Kenda’s metering solutions are built to comply with codes of practice COP1,
COP2, COP3, COP5. Our experience includes installation of various meter types,
including, but not limited to:
Landis+Gyr E850 ZMQ200
- Class 0.2S / 0.5S active,
0.5 /1 reactive
- RS232 / RS 485 Interface
- DLMS Protocol
- Optical interface
according to IEC62056

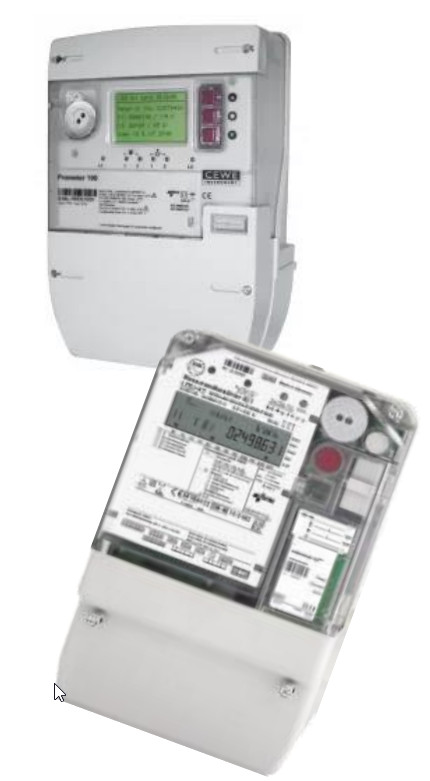

Cewe Prometer 100
- Class 0.2S / 0.5S active, 0.5 /1 reactive
- HV3/HV4/LV4 Connection type
- Compliant with IEC 62052-11, IEC 62053-22, IEC 62053-23,
EC 62053-24, IEC 62056-52, IEC 61010-1, IEC 61010-2-030,
ICE, MID (EN 50470-1, EN 50470-3) Standards
- In built IEC61850 along with RS232/RS485 and Ethernet ports
- Flexible and modular communications ensure integration with
AMR / AMI / SCADA systems
EMH LZQJ-XC series
- Design to VDEW-Specifications 2.1
- Network analysis
- Optional with DLMS
- RS485 communications

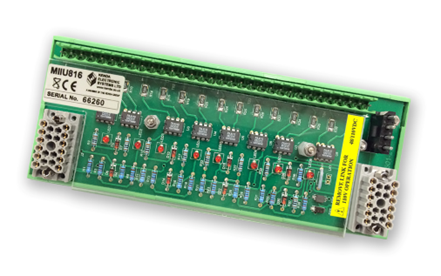

Meter Impulsing Interposing Units (MIIUs)
- Kenda MIIU816 / MIIU416 2 or 4 Outputs per Input
- Powered by nominal 48V DC or 110V DC
- Plug in replacement for existing MIIUs
